2025 New Type Prepainted Galvanized Steel Floor Deck Roll Forming Machine

prepainted galvanized steel floor deck machine

2025 floor deck roll forming machine

new type roll forming machine

Plaats van herkomst:

China vasteland

Merknaam:

FMS

Certificering:

ISO CE

Neem contact met ons op

Vraag een offerte

Productgegevens

Productnaam:

Gegalvaniseerde stalen vloerplanken Rolvormlijnen Fabrikant

Maat:

380v/50hz, 3 fasen of als uw verzoek

Gewicht:

8000KG

Snijtype:

Hydraulisch snijden

Controlesysteem:

Motor, pomp, motor, PLC

Belangrijkste verkoopargumenten:

Lange levensduur

Voedingsbreedte:

1200 mm

Materiaal van rollen:

#45 staal met harde chroomcoating

manier van snijden:

Hydraulisch snijden

Roldikte:

0,8-1,5 mm

Markeren:

prepainted galvanized steel floor deck machine

2025 floor deck roll forming machine

new type roll forming machine

Betaling en verzendvoorwaarden

Min. bestelaantal

1 set

Prijs

negotiable

Verpakking Details

40 'FLC

Levertijd

30 werkdagen

Betalingscondities

L/c, t/t, d/a, d/p

Levering vermogen

20 sets per maand

Verwante producten

Video

2025 factory price Prepainted Galvanized Steel Floor Deck Roll Forming Machine

Vind de beste prijs

Video

2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine

Vind de beste prijs

Video

2025 high Strenth Steel Floor Deck Roll Forming Machine

Vind de beste prijs

Video

1.2mm Profiel die Dot Floor Deck Roll Forming-Machine drukken

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

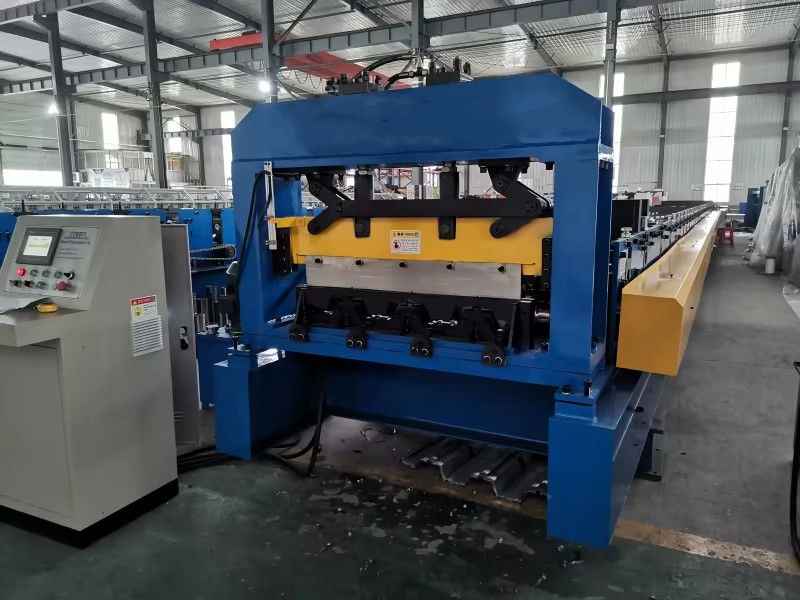

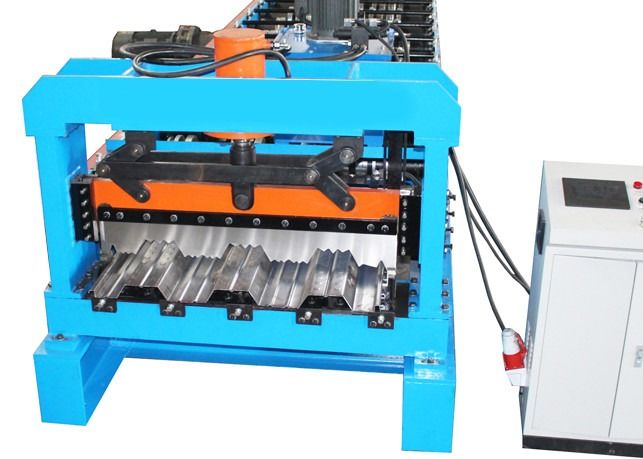

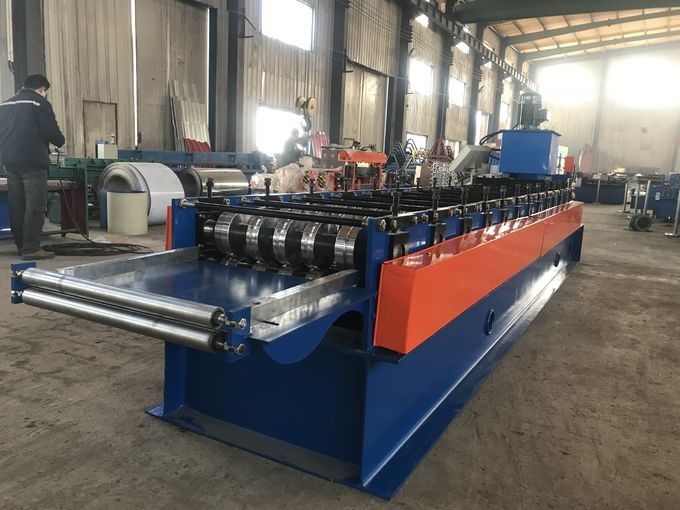

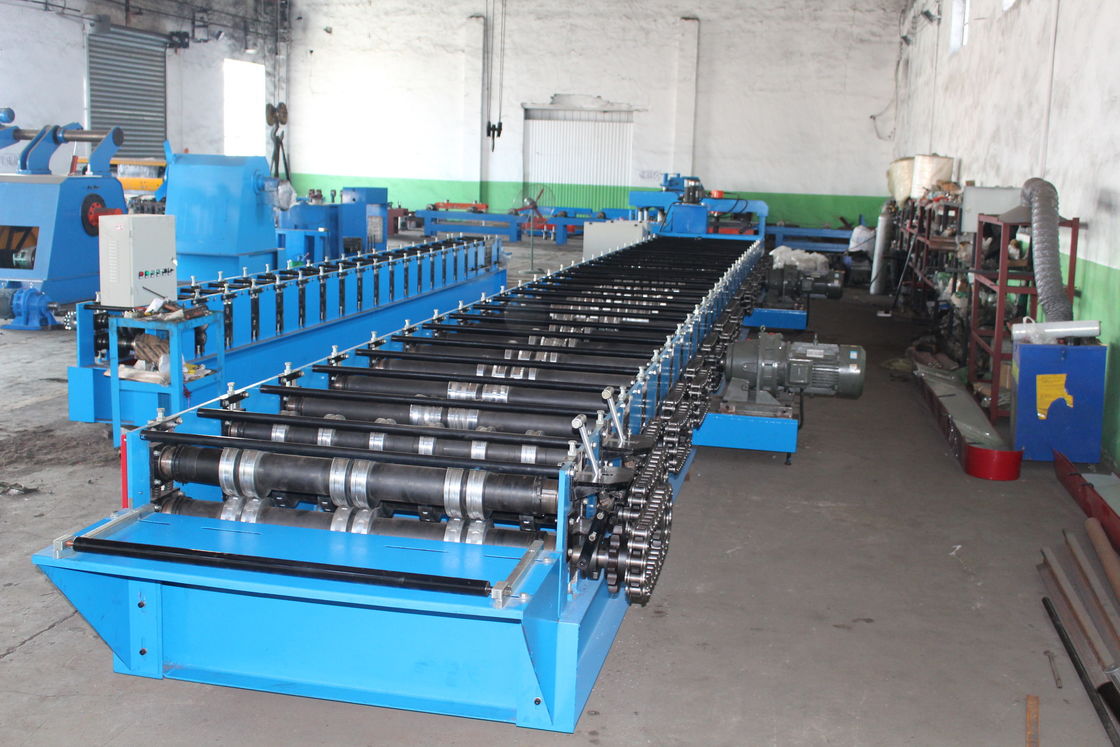

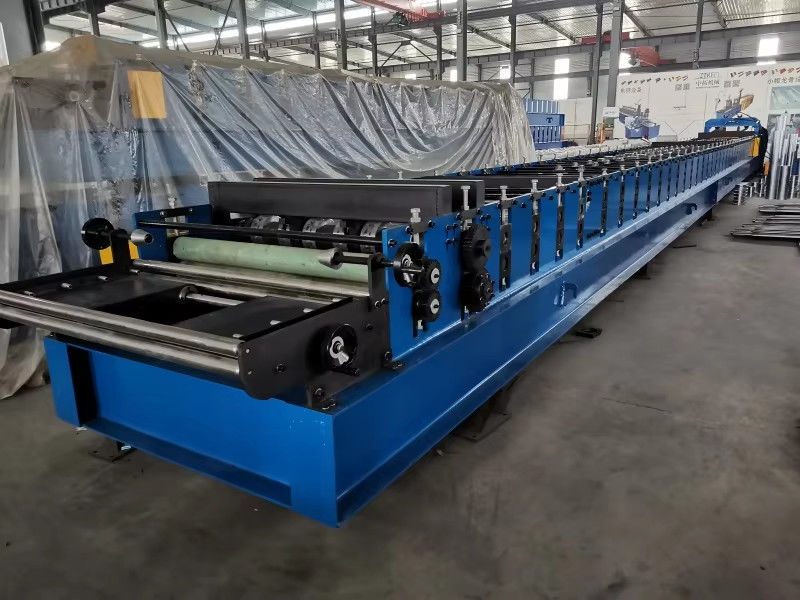

2025 New Type Prepainted Galvanized Steel Floor Deck Roll Forming Machine

Galvanized Steel Floor Decking Roll Forming Lines Manufacturer

The steel floor deck roll forming machine is engineered to produce high-quality steel floor decks, also known as floor bearing steel plates. These floor decks are specifically designed for supporting concrete or insulating membranes in roof systems, providing a structurally efficient solution for both roof and floor applications.

The floor decking features high peak strength and exceptional durability while maintaining cost-effectiveness, making it an ideal choice for modern construction projects.

Specification

Suitable Material

Material Width	1000/1250mm
Effective Width	600/850/915 mm
Material Thickness	0.8-1.5mm
Material Type	Galvanized Steel Strip, Prepainted Galvanised Steel
Yield Strength	245Mpa

Main Machine

Shaft Diameter	95mm
Wall Panel Thickness	18mm
Base Specification	H446*199
Main Motor	37KW hydraulic system
Forming Speed	0-10m/min
Forming Station	33 Stations
Blade Material	Cr12 (Die Steel)

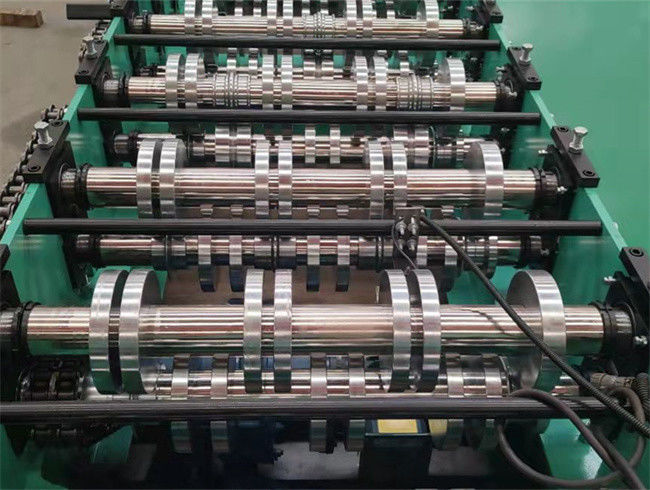

Roller Material	45# steel, CNC lathes, Heat Treated, hard Chrome Coated
Speed Regulation	AC Inverter Speed Regulation
Driving Mode	Reduction Motor + Chain Transmission
Cutting Mode	Hydraulic Type, Post-cutting
Cutting Motor	Hydra station/hydraulic motor
Measuring Mode	Photoelectric Encoder
Control Mode	PLC
Operation Mode	Button + Touch Screen
Voltage	380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph
Dimension	15 M1.5M1.3M
Machine Weight	16500KG (15500KG)

Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (excluding electrical parts)
Repairs will not be performed even during the guarantee period in the following circumstances:
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation

Payment Terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
Delivery Time: 30 days after the down payment is received
