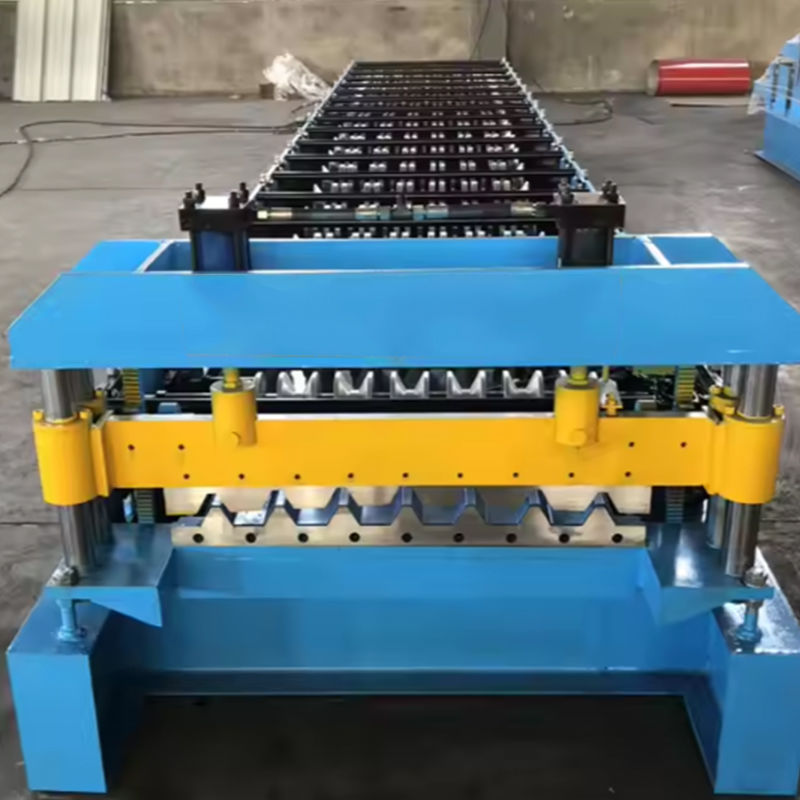

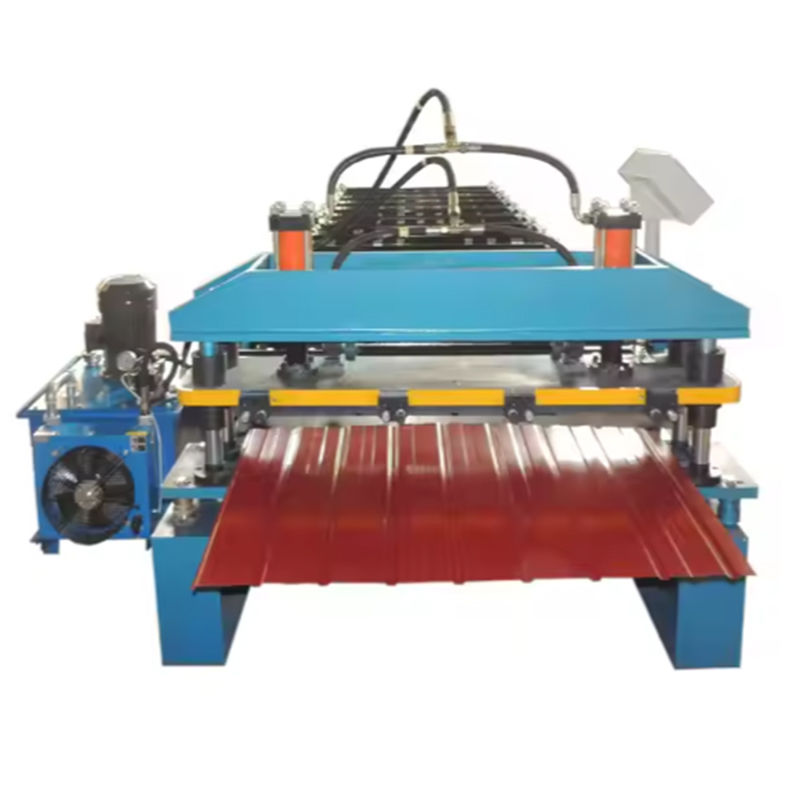

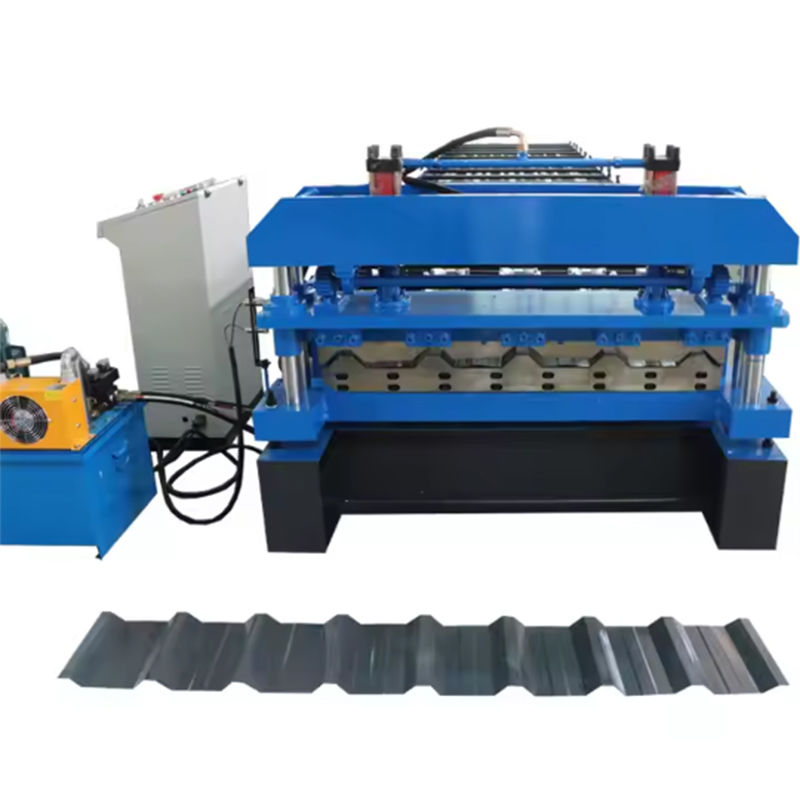

PLC Control 0.5mm IBR Trapezoidal Sheet Roll Forming Machine

The trapezoidal color steel tile forming machine is a specialized roll-forming equipment designed to continuously produce trapezoidal-profiled color steel sheets (also known as metal roofing sheets) from coiled steel. These sheets are widely used in construction for roofing, wall cladding, and industrial buildings due to their durability, weather resistance, and aesthetic appeal.

• Material Processing: Transforms pre-painted galvanized steel coils (or other metal coils) into trapezoidal-shaped sheets with precise dimensions.
• Multi-Stage Roll Forming: Utilizes a series of rollers to gradually shape the metal into the desired trapezoidal profile (e.g., 840, 850, 900, or custom designs).
• Cutting System: Cuts sheets to specified lengths (manually or via PLC-controlled automatic cutting).

• Embossing patterns for anti-slip surfaces
• Hydraulic or pneumatic punching for screw holes
• Stacking/conveyor systems for automated output

• Roofing & Wall Panels: For industrial plants, warehouses, commercial buildings, and residential projects
• Cold Storage & Sandwich Panels: Base material for insulated panels
• Portable Shelters & Container Houses: Lightweight and corrosion-resistant structures

1. Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the following circumstances:

• Damage occurs due to a natural disaster
• Malfunction occurs due to user error
• Malfunction occurs due to modifications
• Malfunction occurs due to further movement or shipment after installation

• 40% in advance as down payment
• 60% is paid before the shipment is processed

• FOB: Tianjin Xingang Port
• The Delivery Time: 30 days after the down payment is received
