C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

light gauge steel roll forming machine

villa house roll forming machine

stud and track roll forming machine

Plaats van herkomst:

CHINA

Merknaam:

FMS

Certificering:

ISO CE

Modelnummer:

C89

Neem contact met ons op

Vraag een offerte

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Productgegevens

Productnaam:

C89 Roll Forming Machine

Dimensie (L*W*H):

6800 mm*1000 mm*1500 mm

Grondstof:

Galvalum, gegalvaniseerd

Werksnelheid:

20 m/min - 25 m/min

Kleur:

Wit

Levering:

45 werkdagen

Motorvermogen:

7,5 kW

Containerlading:

20 voet

Powlevering:

380V, 60Hz, 3Ph

Profiel:

C89

Besturingssysteem:

PLC

Snijlengte nauwkeurigheid:

± 2 mm

Snijsysteem:

Hydraulisch

Materiële dikte:

0,8-1,2 mm

Spanning:

380V

Markeren:

light gauge steel roll forming machine

villa house roll forming machine

stud and track roll forming machine

Betaling en verzendvoorwaarden

Min. bestelaantal

1 set

Prijs

negotiable

Verpakking Details

20 'FLC

Levertijd

30 werkdagen

Betalingscondities

L/c, t/t, d/a, d/p

Levering vermogen

20 sets per maand

Verwante producten

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Vind de beste prijs

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Vind de beste prijs

10-15m/min CU track Machine About 7.5m1.5m1.2m Design at 10-15m/min

Vind de beste prijs

Video

High Speed Light Steel L Wall Angle Corner Bead Roll Forming Machine

Vind de beste prijs

Neem contact met ons op

86-317-2016816

Contact opnemen

Productbeschrijving

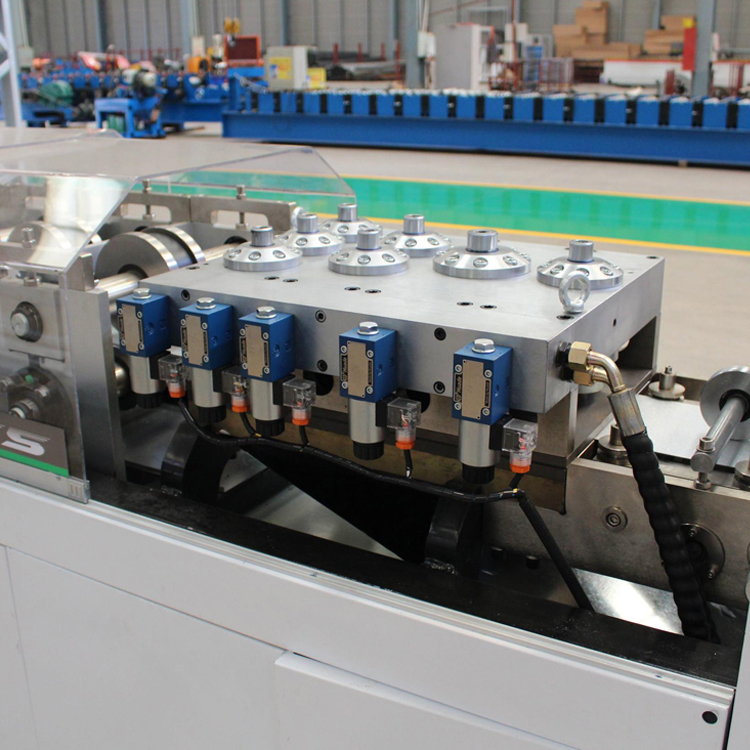

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

High speed Stud And Track Roll Forming Machine with flying cutting system

Light gauge steel villa stud cold-forming equipment is a type of roll forming machinery specifically designed to produce the primary structural components--the studs, tracks, and channels--used in Light Gauge Steel Framing (LGSF) for construction, particularly in modern villas and residential buildings. This equipment transforms continuous coils of galvanized steel sheet into precise, high-strength C-sections (studs), U-sections (tracks), and other custom profiles through a cold-forming process.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.5-1.2 mm
3	Working Speed	20-40 m/min
4	Roller Station	9 Raws
5	Dimension (LWH)	5800 mm1000 mm1500 mm
6	Machine Weight	2000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Advantage

Easy to operate
Long warranty

Payment terms

40% in advance as down payment by TT
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
