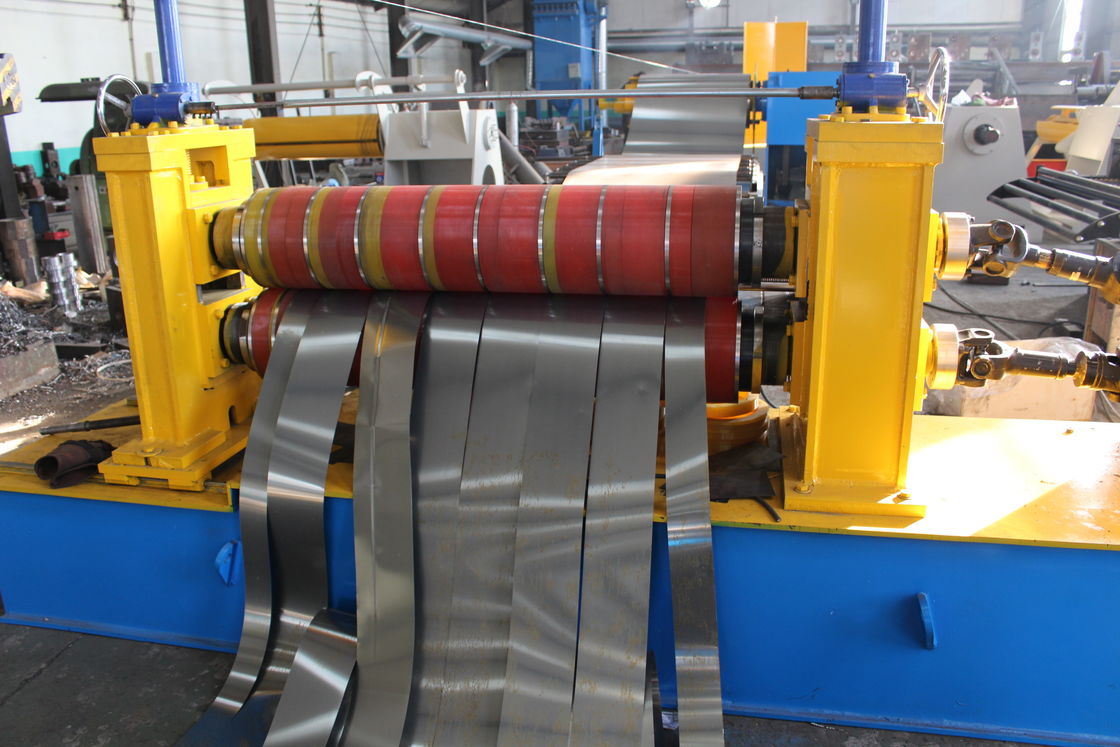

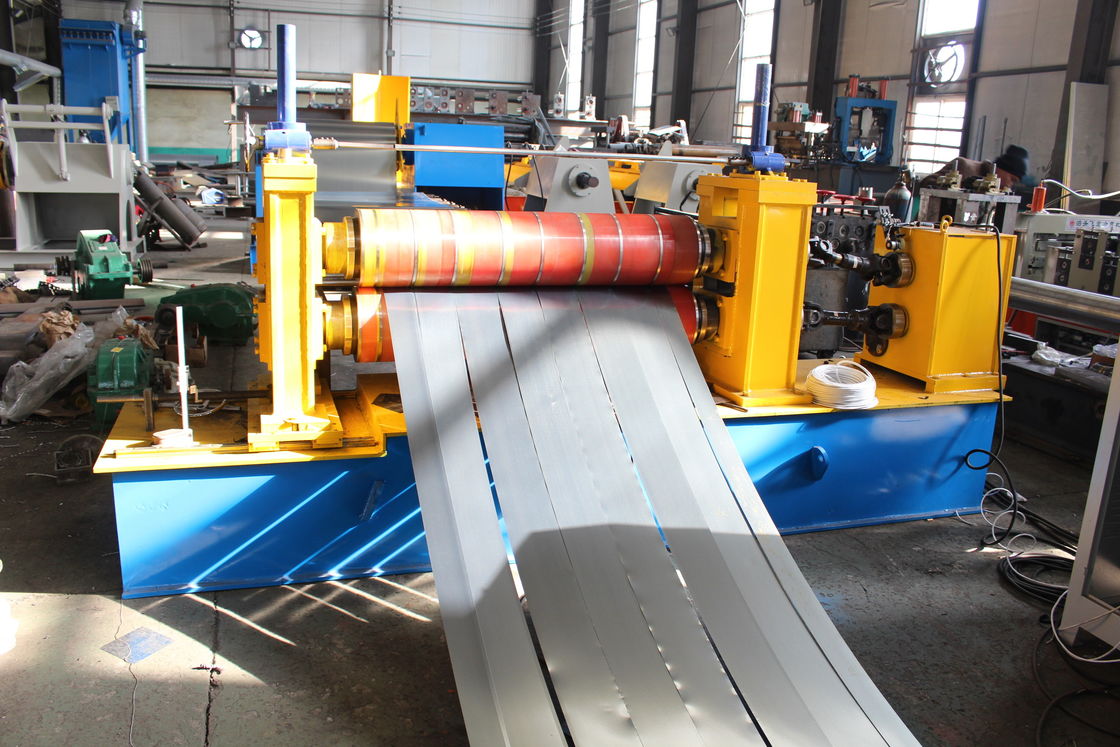

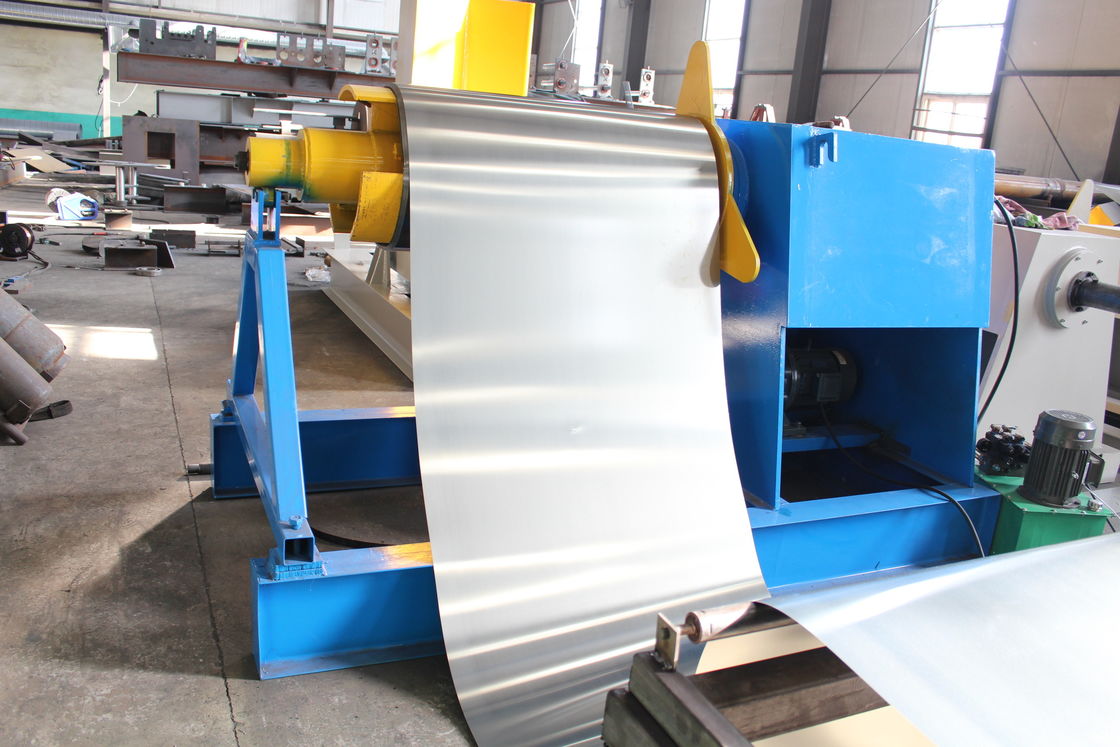

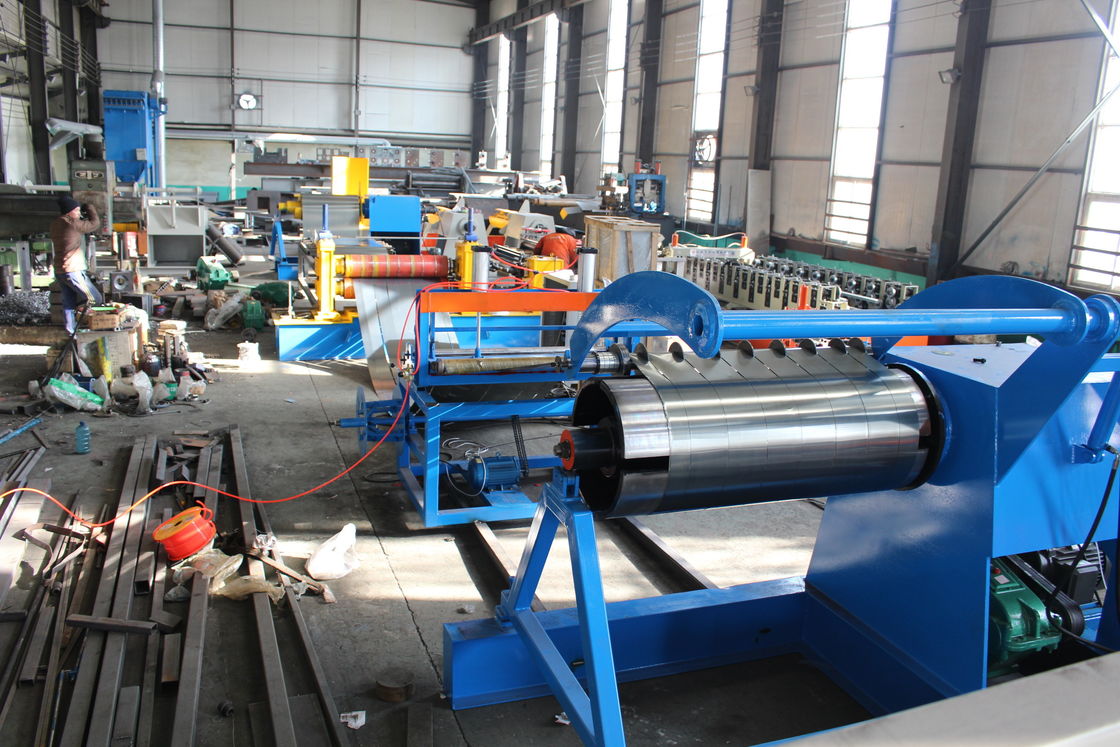

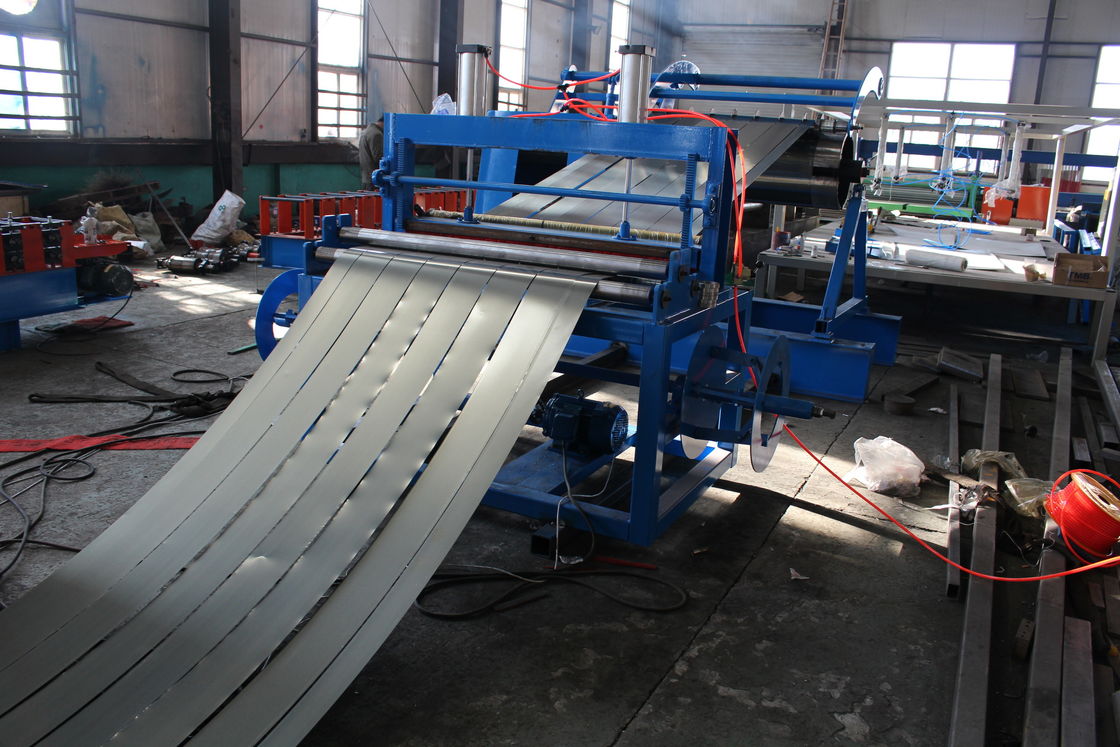

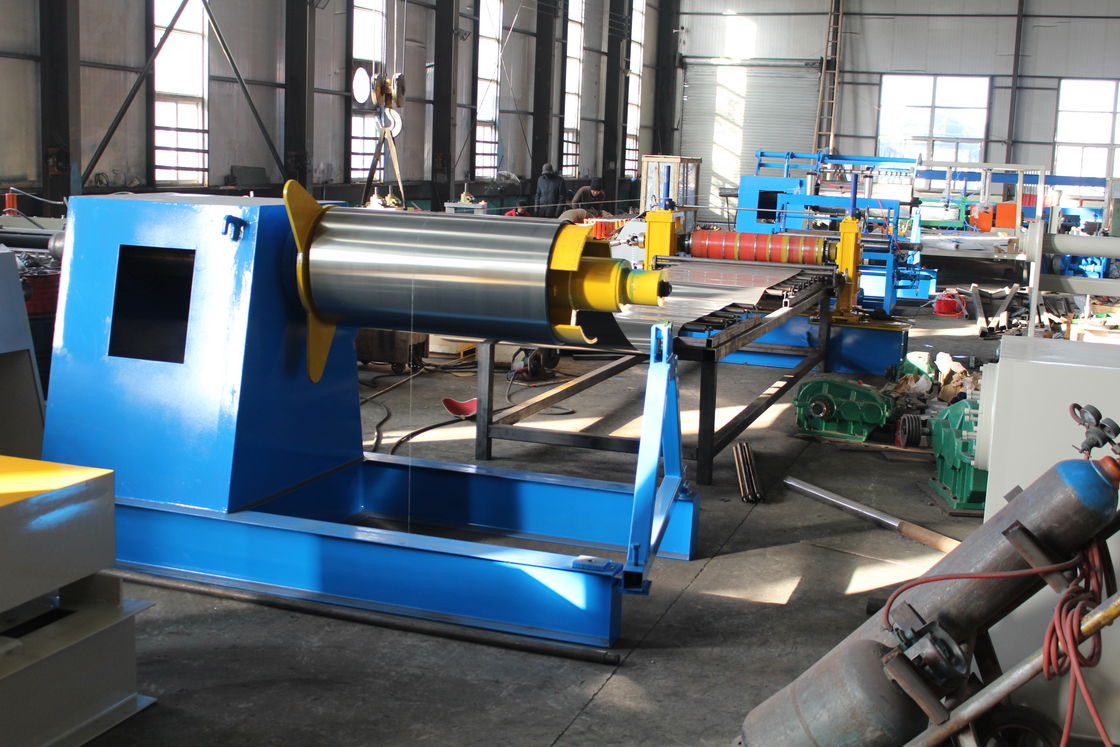

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Simple High Speed Mini Slitter Slitting Line With Hydraulic Uncoiler And Recoiler

The mini slitter line can become an ideal support if the product includes a great variety of coils with reduced widths in which it is certainly not economical to use a large line for cutting coils under 300 mm and especially when very reduced spaces are necessary because of the product type.

Furthermore, the mini-line makes it possible to reach considerable speeds, up to 500 m/min. Other specifications: coil width from 300 mm to 600 mm, coil weight from 3 to 8 Ton, material thickness from 0.2 to 3.2 mm, and automatic decoiling by drawing or by loop.

Recommended for producing narrow coils, but especially a fast line for small spaces and particularly suitable for brass, copper, aluminium, tinfoil and lamination steel but also for cold-rolled, galvanized and prepainted materials and stainless steel.

• Guaranteed against malfunctions due to manufacturing defects for 1 years after date of purchase except Electrical parts.
• Repairs will not be performed even during the guarantee period in the follow circumstances:
  • Damage occurs due to a natural disaster
  • Malfunction occurs due to user error
  • Malfunction occurs due to modifications
  • Malfunction occurs due to further movement or shipment after installation

• 40% in advance as down payment
• 60% is paid before the shipment is processed

• FOB: Tianjin Xingang Port
• The Delivery Time: 60 working days after the down payment is received.
